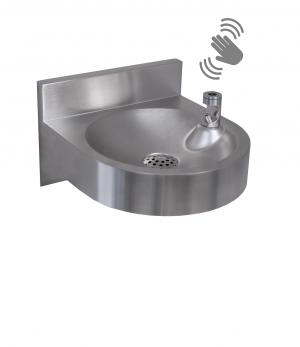

FONT10BCL Wall-Mounted Drinking Fountain With Contactless Bubbler

Wall Mounted Drinking Fountain With Infra Red Sensor For Contactless Bubbler For Indoor Or Covered Outdoor Installation

Product Specification

The Infra Red Sensor is activated by a hand hovering over the Infra Red Sensor at a distance of 2cm to 5cm
The Sensor is connected to an Inlet Solenoid valve which opens the water supply when activated, and stops the water flowing when the hand is removed
The Solenoid Valve is powered by two 3V batteries with a tested life span of 86.000 Solenoid activations
The Contactless FONT101CL Bubbler is programmed to stop dispensing after 6 seconds. If that is insufficient you can place your hand again over the sensor to continue dispensing
The FONT10BCL provides ambient water. It can be connected to an Under-sink Chiller to provide chilled water

Dimensions/Weight:

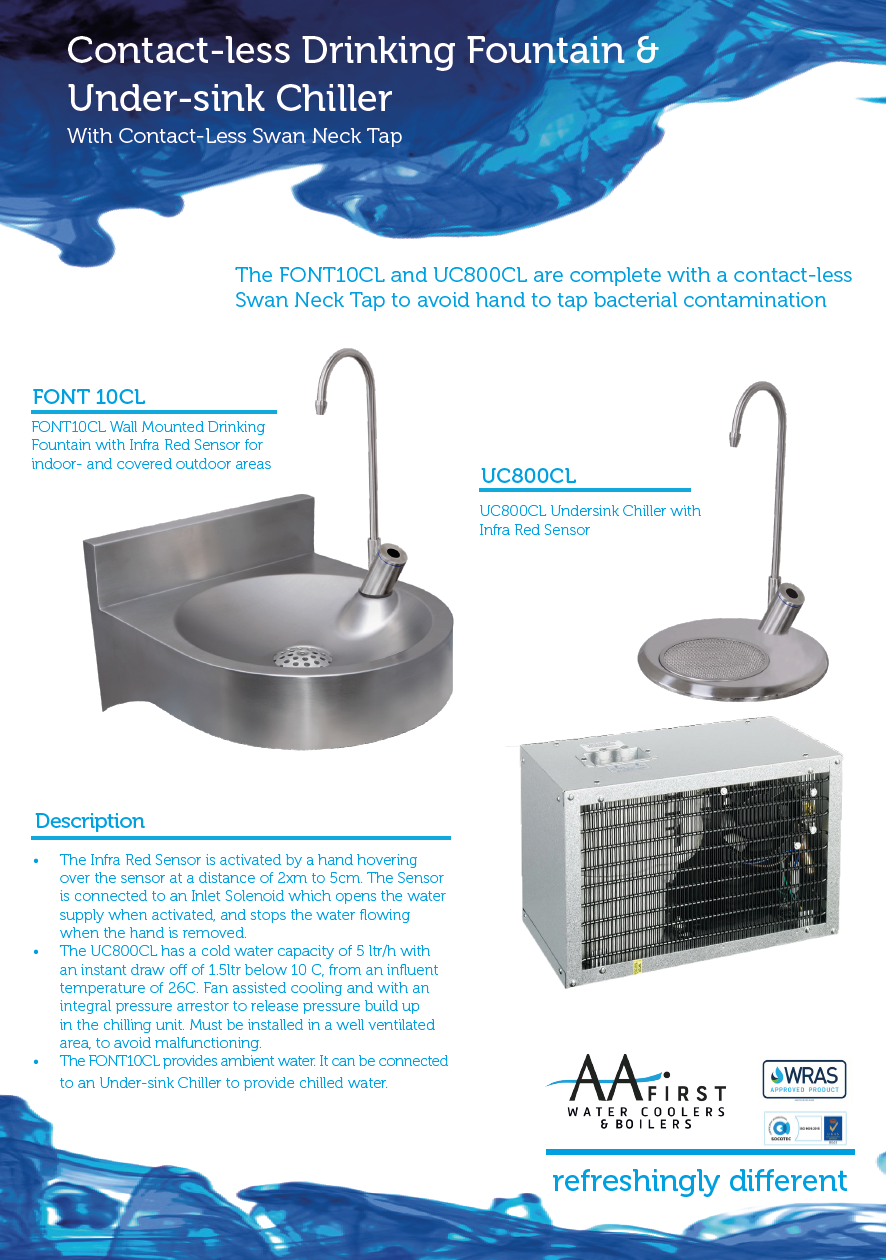

Brochure Thumb:

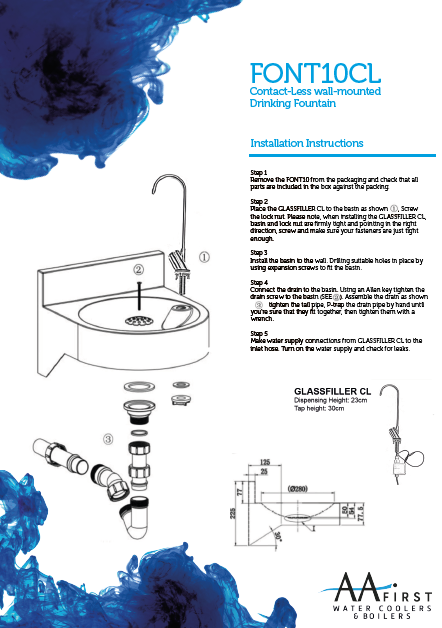

Installation Brochure:

Installation Thumb:
